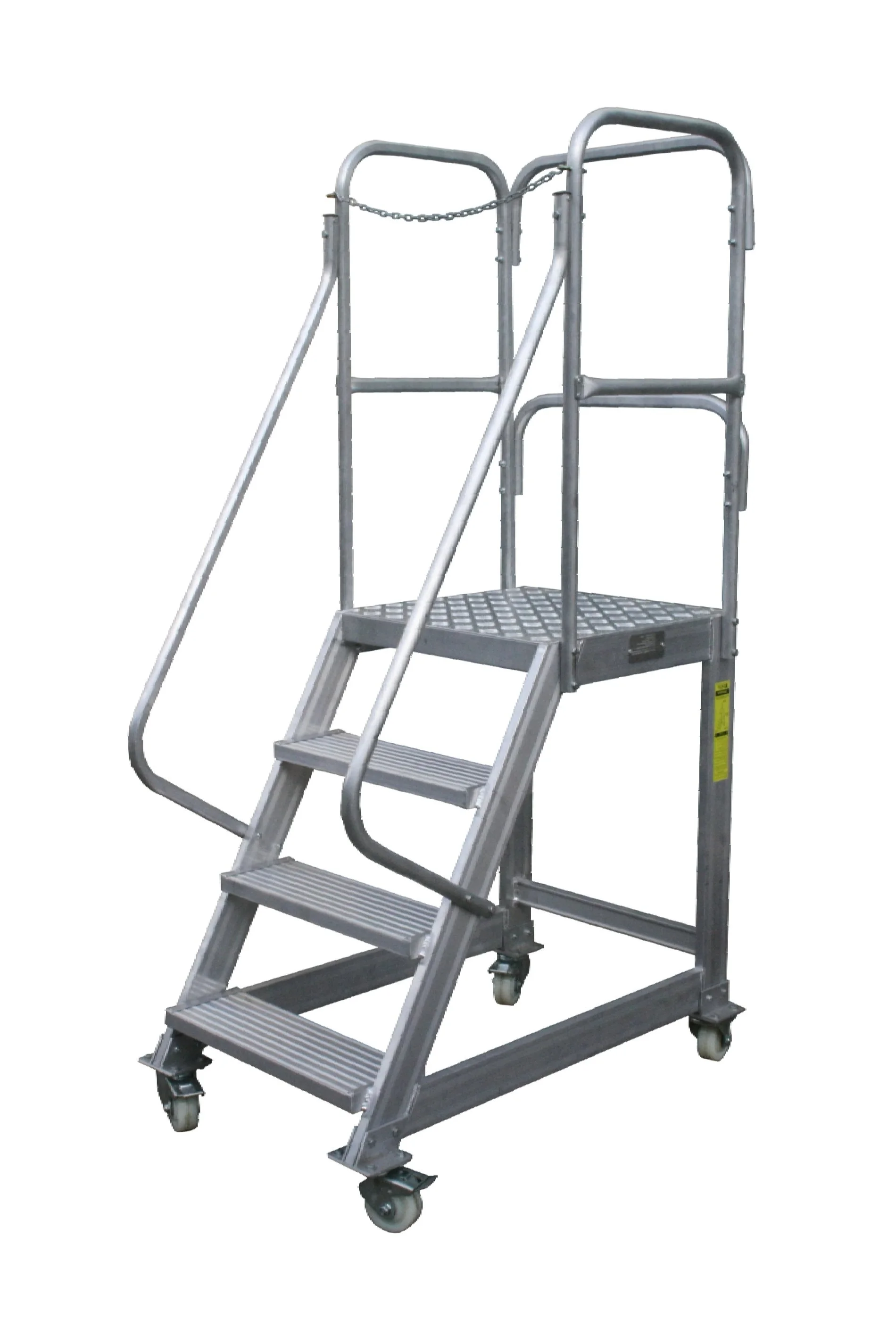

Mobile Work Platform
The MWP is a fully welded solution, and can include handrail/guard railings. The sturdy platform is suited for lower-level work between 0.5 metres to 1.5 metres. Non-marking nylon wheels are perfect for modular fit-outs or plant maintenance.
Product Code: MWP
Product Features:
Heavy Duty Aluminium profile construction, gives durability, agility and great load bearing capacity.
Reinforced aluminium platform, provides comfortable access during long working hours.
Standard 60° angle, wide step (depth and width) allow effortless ascent/descent.
Three sided guardrail, with safety chain locking for maximum protection.
Fully welded solution; the handrails and guardrails can be dismantled.
Handrail option available for MWP4/ MWP5/ MWP6.
Additional features possible (i.e. toe plate, door, etc).
Standard Dimensions:
Step interval: 250mm
Step width**: 600mm (800mm option available)
Step depth: 180mm
Step angle: 60°
Platform dimensions**: 600mm (width) x 600mm (depth)
Ladder outer width: approx 700mm Guardrail height: approx 975mm Handrail height: based of step angle
* SWL may vary based on final platform dimensions. ** Indicates options that may or may not be altered.
