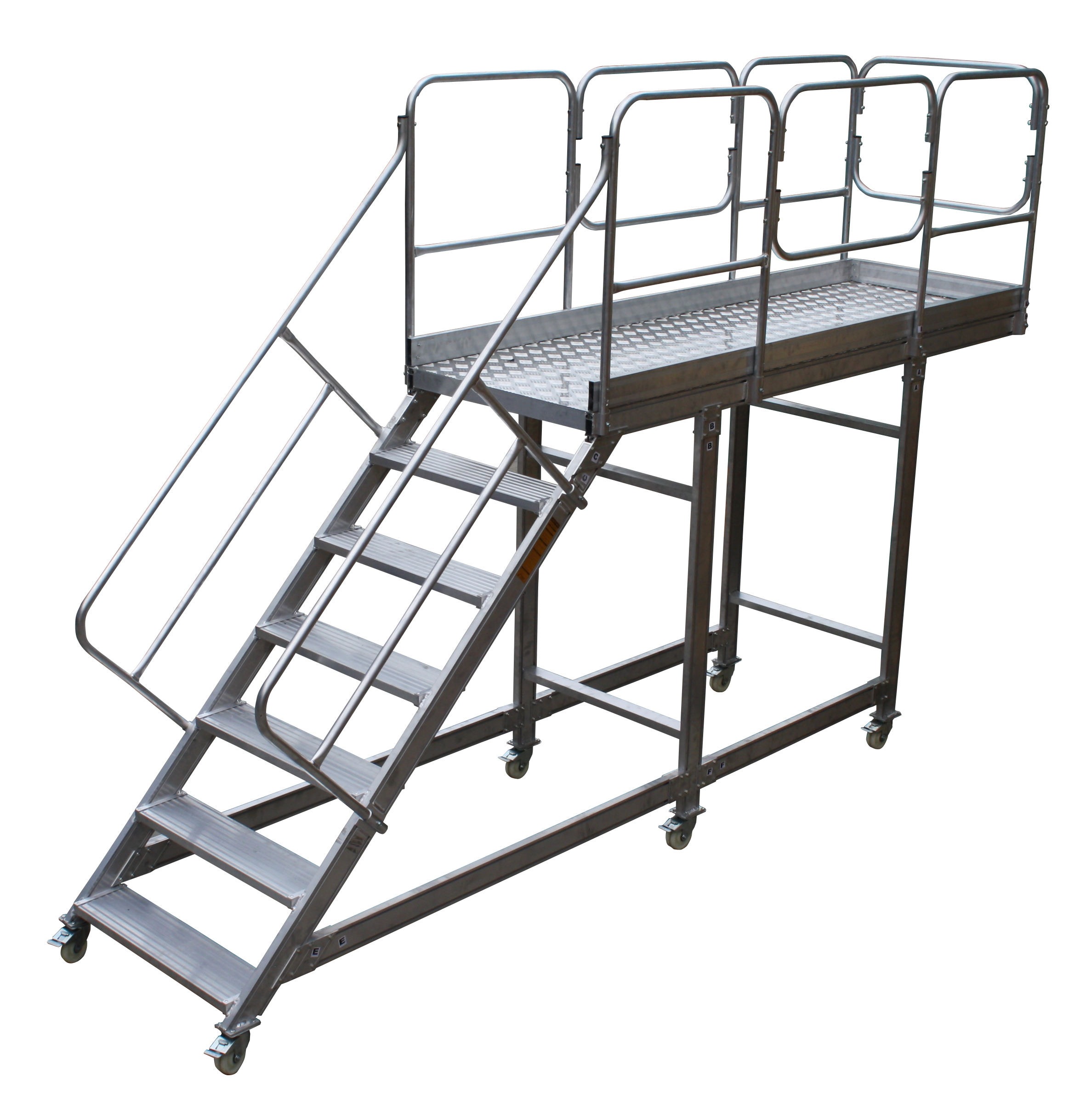

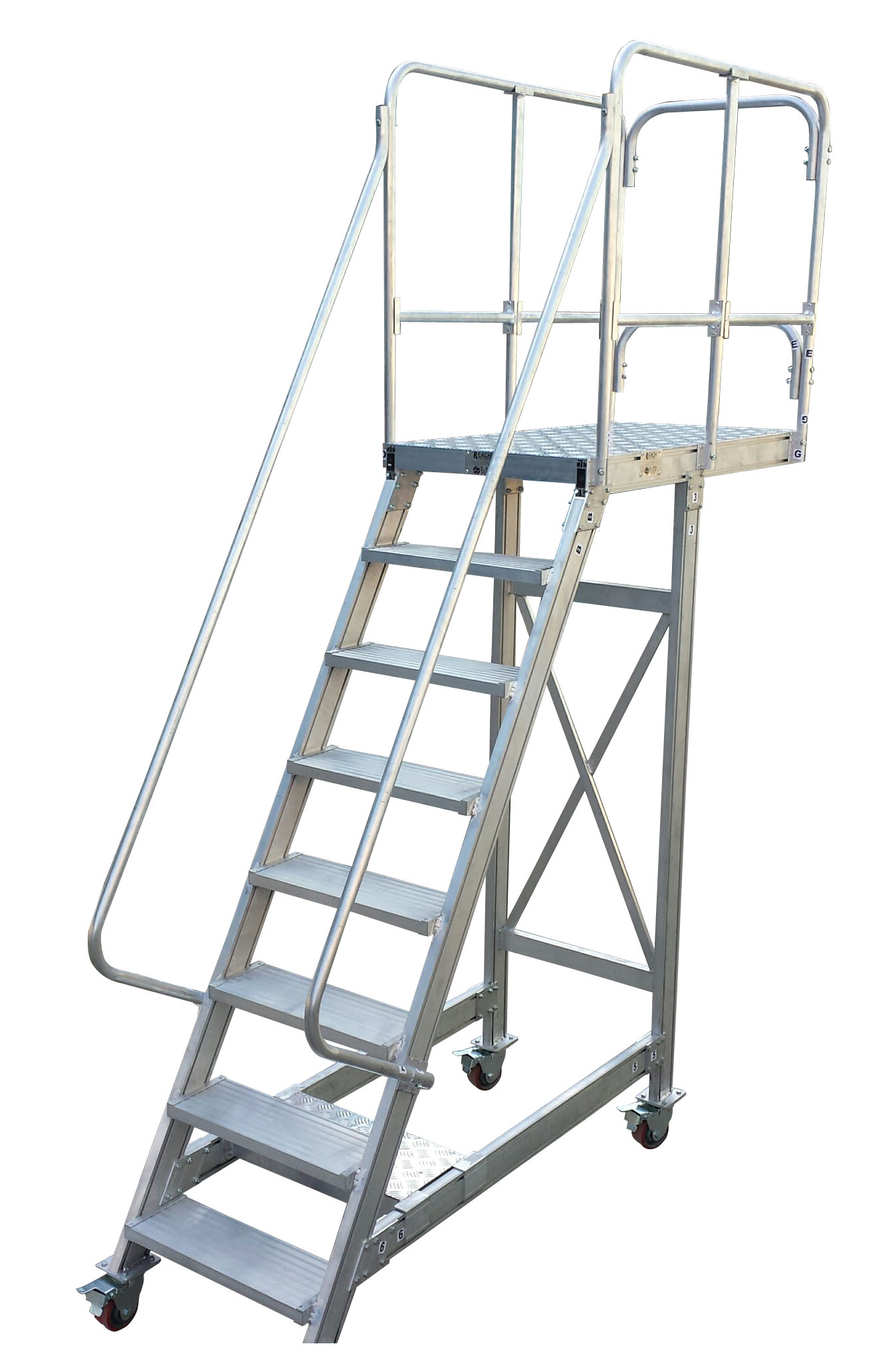

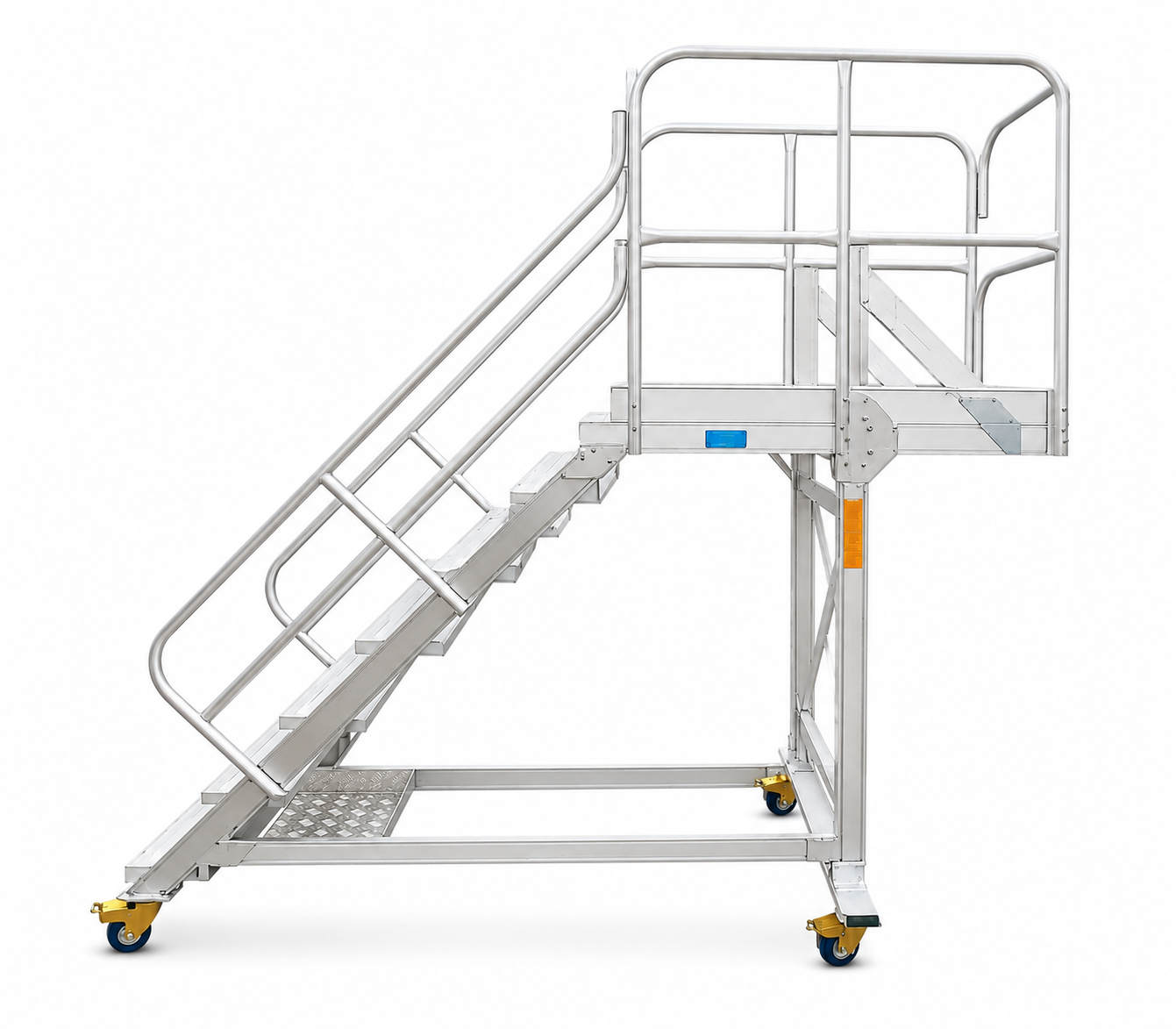

Cantilever Access Platform

The Cantilever Access Platform provides access to hard-to-reach areas near the base of the scaffolding. With a safe overhang, and heavy-duty counterbalance system, the aluminium scaffolding provides unobstructed access to ensure ease and safety while working.

Product Code: CAP

Product Features:

  • Heavy duty Aluminium Alloy gives great strength.

  • Lightness and durability to carry out various works at height.

  • Nut and Bolt system allows for easy assembly / disassembly method.

  • The whole structure can be disassembled and packed in component pieces, saving storage space and transport cost.

  • Rear guard railing with option to remove or gate option.

  • Extended platform area with overhang.

  • Counterweight balance provision at base.

Standard Dimensions:

Step interval: 250mm
Step width: 800mm (600mm & 1000mm options available) Step depth: 180mm (240mm for 45°)
Step angle: 60° (45° option available)
Toeboard option available

Guardrail height: 900mm
Handrail height: based of step angle

Other dimensions only can be calculated as per client requirement / design approval.
